How to Install and Configure KVM on Ubuntu 18.04 LTS Server

KVM (Kernel-based Virtual Machine) is an open source full virtualization solution for Linux like systems, KVM provides virtualization functionality using the virtualization extensions like Intel VT or AMD-V.  Whenever we install KVM on any linux box then it turns it into the hyervisor by loading the kernel modules like kvm-intel.ko( for intel based machines) and kvm-amd.ko ( for amd based machines).

KVM allows us to install and run multiple virtual machines (Windows & Linux). We can create and manage KVM based virtual machines either via virt-manager graphical user interface or virt-install & virsh cli commands.

In this article we will discuss how to install and configure KVM hypervisor on Ubuntu 18.04 LTS server. I am assuming you have already installed Ubuntu 18.04 LTS server on your system. Login to your server and perform the following steps.

Step:1 Verify Whether your system support hardware virtualization

Execute below egrep command to verify whether your system supports hardware virtualization or not,

[email protected]:~$ egrep -c '(vmx|svm)' /proc/cpuinfo
1
[email protected]:~$

If the output is greater than 0 then it means your system supports Virtualization else reboot your system, then go to BIOS settings and enable VT technology.

Now Install “kvm-ok” utility using below command, it is used to determine if your server is capable of running hardware accelerated KVM virtual machines

[email protected]:~$ sudo apt install cpu-checker

Run kvm-ok command and verify the output,

[email protected]:~$ sudo kvm-ok
INFO: /dev/kvm exists
KVM acceleration can be used
[email protected]:~$

Step:2 Install KVM and its required packages

Run the below apt commands to install KVM and its dependencies

[email protected]:~$ sudo apt update
[email protected]:~$ sudo apt install qemu qemu-kvm libvirt-bin  bridge-utils  virt-manager

Once the above packages are installed successfully, then your local user (In my case linuxtechi) will be added to the group libvirtd automatically.

Step:3 Start & enable libvirtd service

Whenever we install qemu & libvirtd packages in Ubuntu 18.04 Server then it will automatically start and enable libvirtd service, In case libvirtd service is not started and enabled then run beneath commands,

[email protected]:~$ sudo service libvirtd start
[email protected]:~$ sudo update-rc.d libvirtd enable

Now verify the status of libvirtd service using below command,

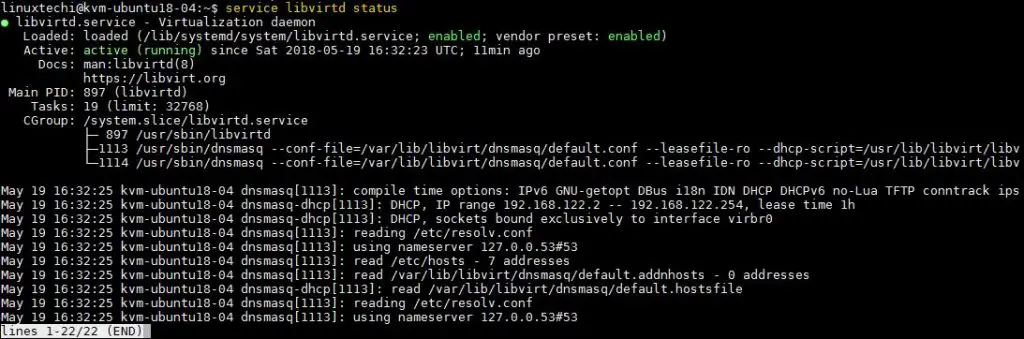

[email protected]:~$ service libvirtd status

Output would be something like below:

libvirtd-command-ubuntu18-04

Step:4 Configure Network Bridge for KVM virtual Machines

Network bridge is required to access the KVM based virtual machines outside the KVM hypervisor or host. In Ubuntu 18.04, network is managed by netplan utility, whenever we freshly installed Ubuntu 18.04 server then a file with name “/etc/netplan/50-cloud-init.yaml” is created automatically, to configure static IP and bridge, netplan utility will refer this file.

As of now I have already configured the static IP via this file and content of this file is below:

network:
    ethernets:
        ens33:
            addresses: [192.168.0.51/24]
            gateway4: 192.168.0.1
            nameservers:
              addresses: [192.168.0.1]
            dhcp4: no
            optional: true
    version: 2

Let’s add the network bridge definition in this file,

[email protected]:~$ sudo vi /etc/netplan/50-cloud-init.yaml
network:
  version: 2
  ethernets:
    ens33:
      dhcp4: no
      dhcp6: no

  bridges:
    br0:
      interfaces: [ens33]
      dhcp4: no
      addresses: [192.168.0.51/24]
      gateway4: 192.168.0.1
      nameservers:
        addresses: [192.168.0.1]

As you can see we have removed the IP address from interface(ens33) and add the same IP to the bridge ‘br0‘ and also added interface (ens33) to the bridge br0. Apply these changes using below netplan command,

[email protected]:~$ sudo netplan apply
[email protected]-04:~$

If you want to see the debug logs then use the below command,

[email protected]:~$ sudo netplan --debug  apply

Now Verify the bridge status using following methods:

[email protected]:~$ sudo networkctl status -a

networkctl-command-output-ubuntu18-04

[email protected]:~$ ifconfig

ifconfig-command-output-ubuntu18-04

Start:5 Creating Virtual machine (virt-manager or virt-install command )

There are two ways to create virtual machine:

  • virt-manager (GUI utility)
  • virt-install command (cli utility)

Creating Virtual machine using virt-manager:

Start the virt-manager by executing the beneath command,

[email protected]:~$ sudo virt-manager

Start-Virt-Manager-Ubuntu18-04

Create a new virtual machine

ISO-file-Virt-Manager

Click on forward and select the ISO file, in my case I am using RHEL 7.3 iso file.

Select-ISO-file-virt-manager-Ubuntu18-04-Server

Click on Forward

In the next couple of windows, you will be prompted to specify the RAM, CPU and disk for the VM.

Now Specify the Name of the Virtual Machine and network,

VM-Name-Network-Virt-Manager-Ubuntu18-04

Click on Finish

RHEL7-3-Installation-Virt-Manager

Now follow the screen instruction and complete the installation,

Read More On : “How to Create, Revert and Delete KVM Virtual machine (domain) snapshot with virsh command

Creating Virtual machine from CLI using virt-install command,

Use the below virt-install command to create a VM from terminal, it will start the installation in CLI, replace the name of the VM, description, location of ISO file and network bridge as per your setup.

[email protected]:~$ sudo virt-install  -n DB-Server  --description "Test VM for Database"  --os-type=Linux  --os-variant=rhel7  --ram=1096  --vcpus=1  --disk path=/var/lib/libvirt/images/dbserver.img,bus=virtio,size=10  --network bridge:br0 --graphics none  --location /home/linuxtechi/rhel-server-7.3-x86_64-dvd.iso --extra-args console=ttyS0

That’s conclude the article, I hope this article help you to install KVM on your Ubuntu 18.04 Server. Apart from this, KVM is the default hypervisor for Openstack.

Read More on : How to Install and Configure KVM on OpenSUSE Leap 15
