In this guide, we will demonstrate how to set static ip address on Debian 11 (Bullseye).
When we install Debian Linux on our system then during the installation it tries to get DHCP ip address from modem (or dhcp server) if available. But it is always to recommended to have a static IP address on your system. The main benefit of Static IP address is that it will be persistent across the reboot.
In Debian 11, we can set the static ip address either via GUI (Graphical User Interface) or via command line (cli).
Set Static IP Address via GUI

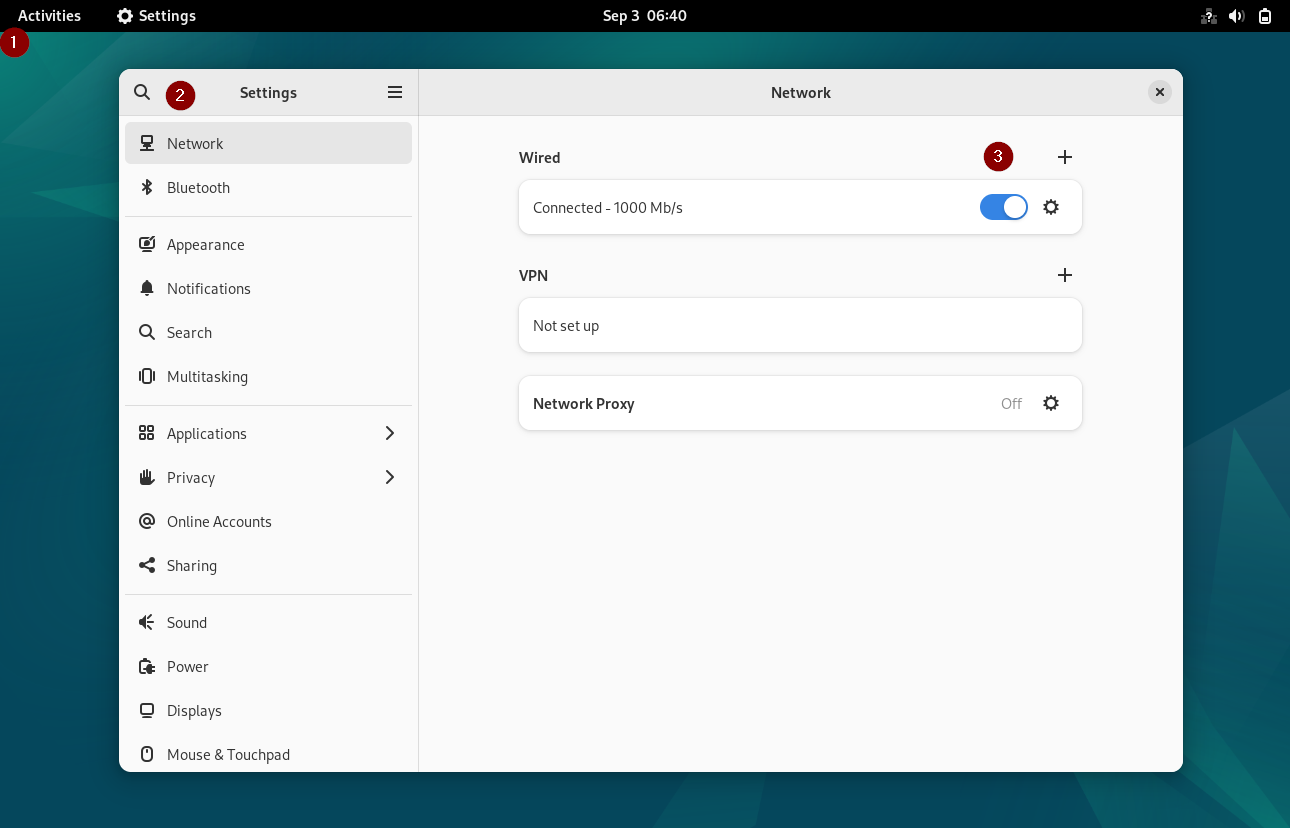

Login to your Debian Desktop environment, From Settings –> Choose Network
Click on Wired Settings and then we will get the following window,
Note: To disable IPv6, go to IPv6 tab and choose ‘Disable’ option
Click on IPv4 Tab

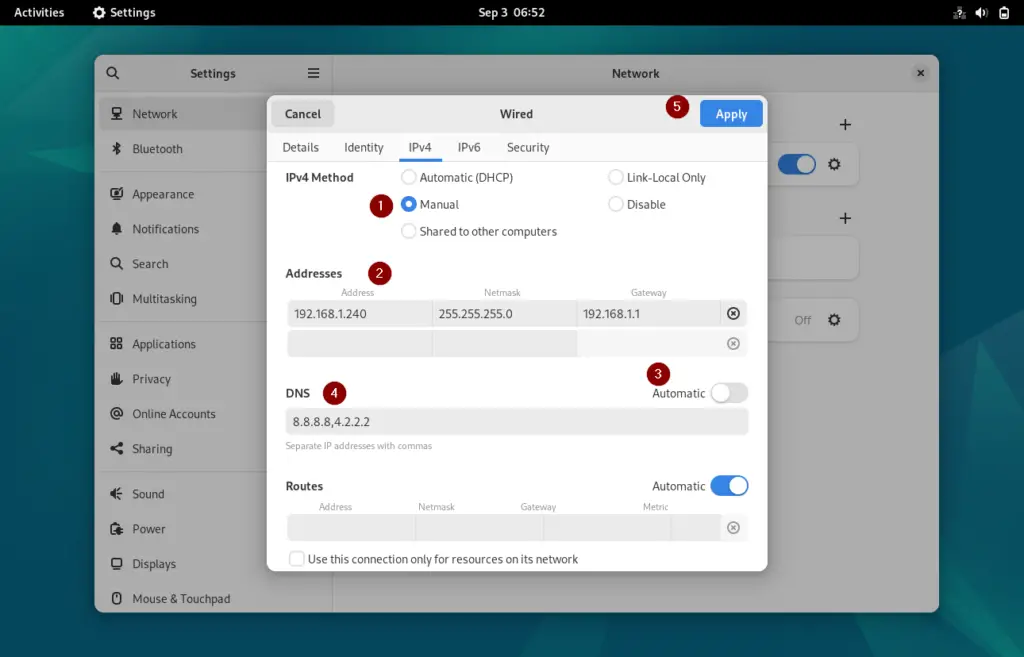

Above window shows that Automatic DHCP is configured, so to configure Static IP choose Manual and then specify the IP details like IP address, netmask, gateway and dns server IP.
Note: To Specify the dns server IP first disable the automatic dns IP by toggling it.
Click on Apply to save the changes.
Now, disable and enable the interface by toggling it so that new IP address is assigned to the Interface.

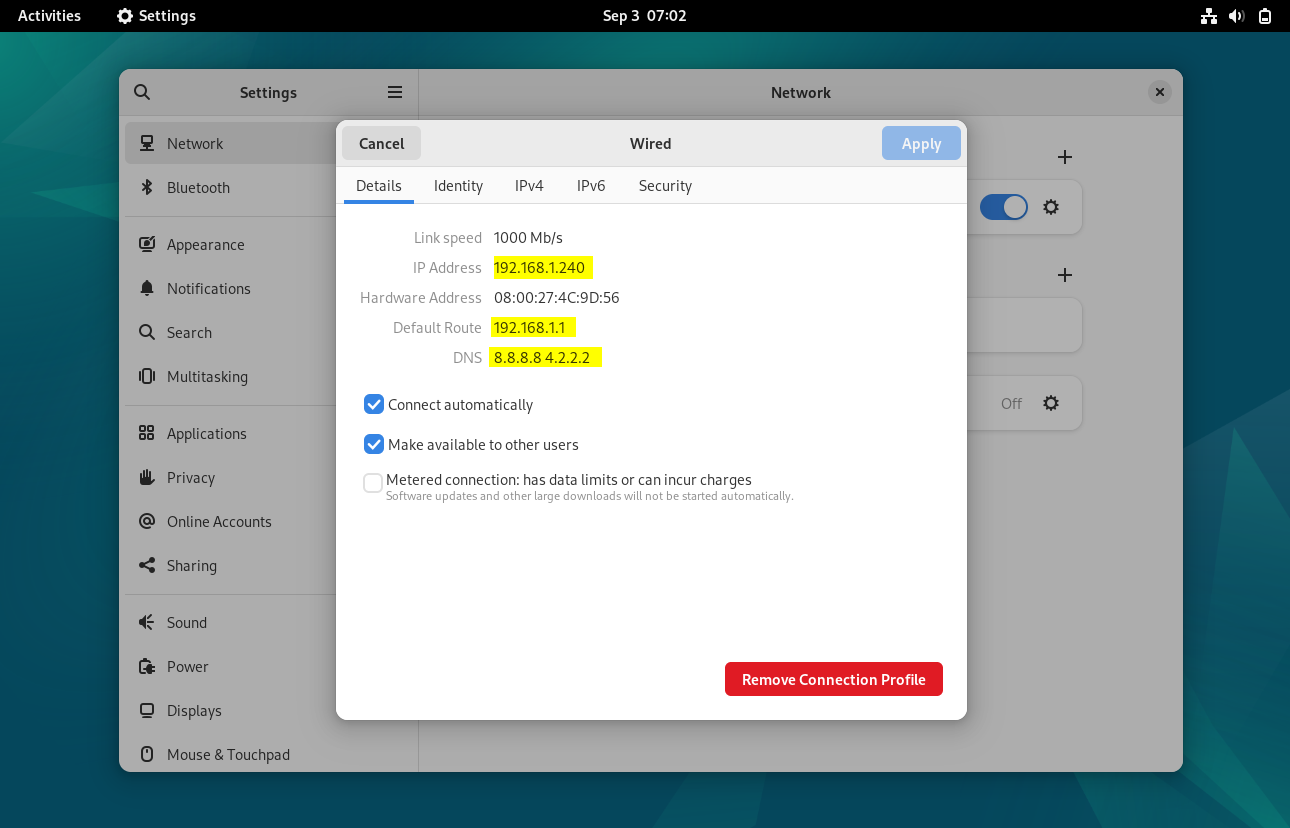

Now again click on wired settings to verify whether the new static ip address is assigned or not.
Perfect, above confirms that new static IP address is configured successfully. Now let’s see the alternate way to configure IP address in Debian Linux.
Set Static IP Address via Command Line
Open the terminal and identify the interface on which we will configure static IP address. Run below ip command,
$ ip add show
Now run nmcli command to get connection name,
$ nmcli connection

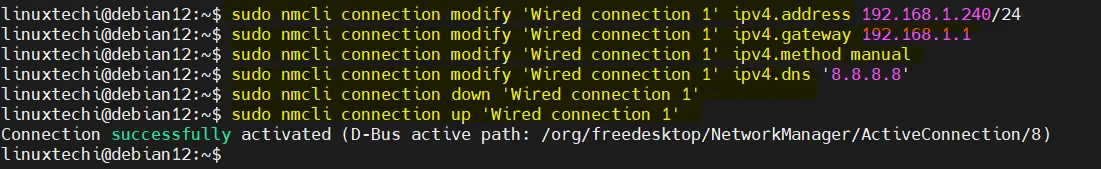

Once we get the connection name, run below nmcli command to assign static ipv4 address,
Syntax:
$ nmcli con mod ‘connection-name’ ipv4.address <IP-Address>
$ nmcli con mod 'eth0' ipv4.address 192.168.1.151/24
Set the gateway by running below
$ nmcli con mod 'eth0' ipv4.gateway 192.168.1.1
Change Configuration from DHCP to Manual , so that IP will be static and persistent, run
$ nmcli con mod 'eth0' ipv4.method manual
Set the DNS server IP by running below command,
$ nmcli con mod 'eth0' ipv4.dns '8.8.8.8'
Disable and enable the connection so that above changes come into the effect.
$ nmcli connection down eth0 $ nmcli connection up eth0
Now Run IP Command to check IP address,
$ ip add show eth0
Output of above commands would look like below:
Perfect, above output confirms that static IP address has been configured successfully on eth0 interface.
Set Static IP Address on Minimal Installed Debian 11
Whenever we install minimal Debian 11 then we will have only the CLI console and don’t have any nmcli utility. So, to configure static ip address we will edit the file ‘/etc/network/interfaces’.
Following is the default content in the file,
$ cat /etc/network/interfaces
Edit the file and set the static IP address as shown below,
$ sudo vi /etc/network/interfaces
Delete the line ‘allow-htplug enp0s3’ and change dhcp parameter to static. Below is my sample file, change interface name and ip details as per your environment.
# This file describes the network interfaces available on your system # and how to activate them. For more information, see interfaces(5). source /etc/network/interfaces.d/* # The loopback network interface auto lo iface lo inet loopback # The primary network interface auto enp0s3 iface enp0s3 inet static address 192.168.1.183 netmask 255.255.255.0 gateway 192.168.1.1 dns-nameservers 8.8.8.8
save & close the file.
To make above changes into the effect the restart the network service
$ sudo systemctl restart networking.service
Now, run ip command to verify the ip address,
$ ip add show
Output,
That’s all from this post. Please do share your feedback and queries in below comments section.
